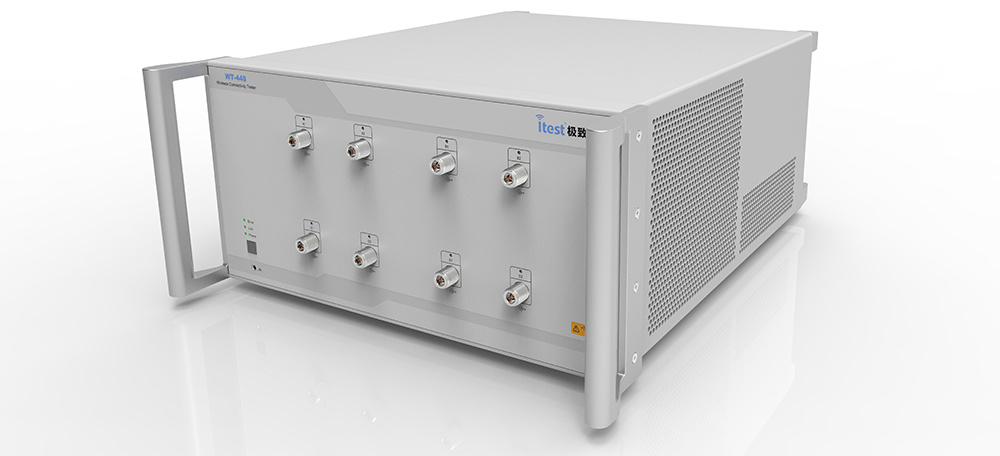

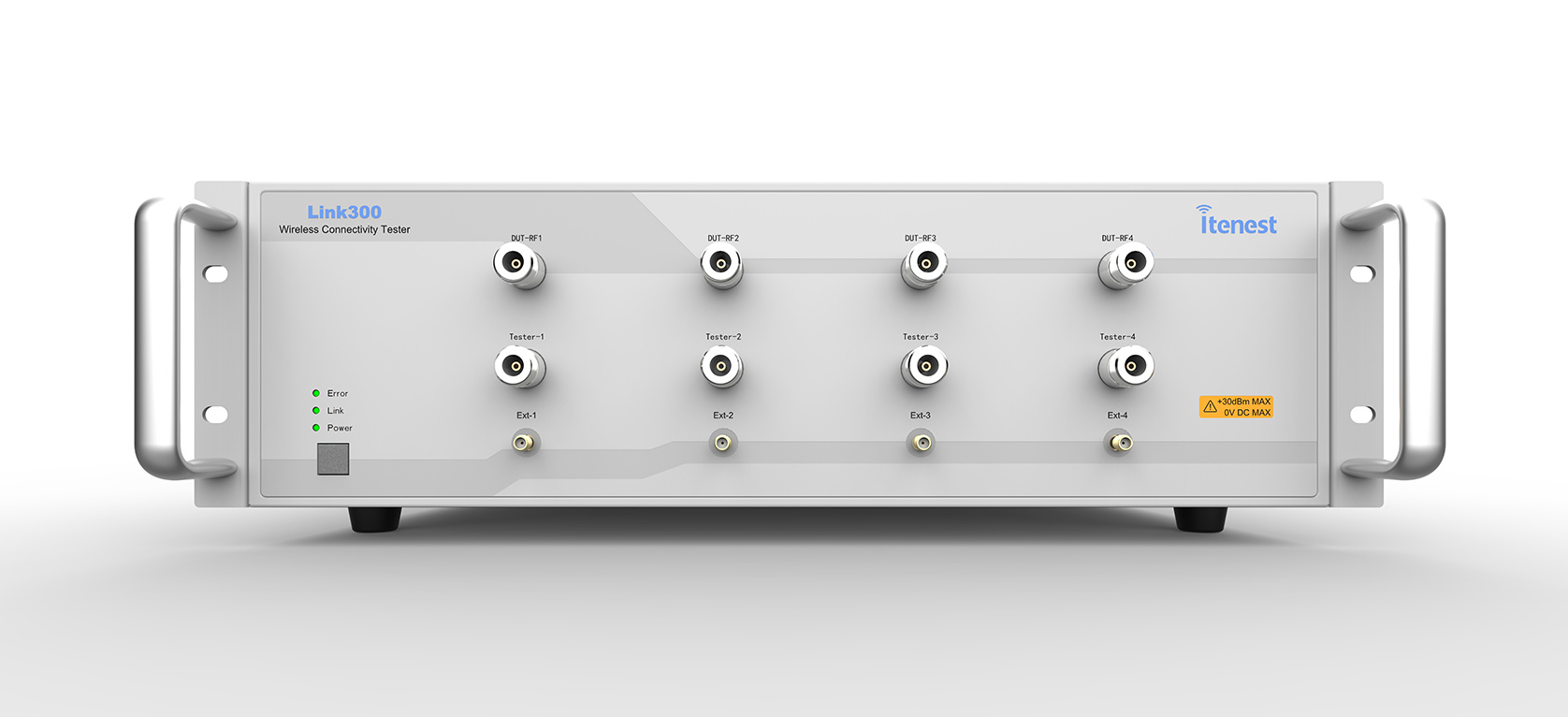

  • LINK300-前视图-视角.104(1).jpg

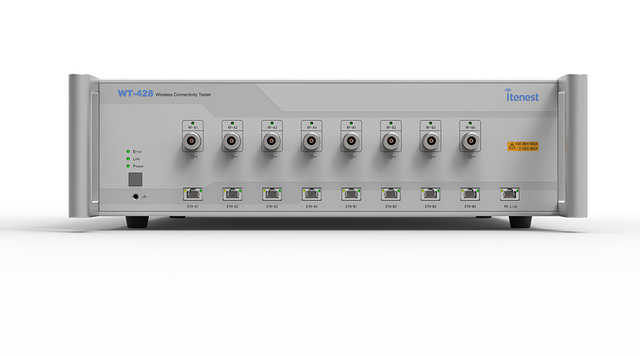

  • LINK300-8前左立体视图-视角03(1).jpg
  • LINK300-2前右立体视图-视角02(1).jpg

Link300 Wireless connection tester

Supports Wi-Fi 7 320M 4 * 4MIMO signaling testing



■ Support 802.11 a/b/g/n/ac/ax/be、4x4 MIMO



■ Support 2.4G, 5G, and 6G



■ Support 20/40/80/160/320M bandwidth



■ Support AP/STA testing



■ Support Tx and Rx testing

Classification:

WLAN Products

Key words:

Link300 Wireless connection tester


Product Consulting
  • Product Description
  • Specification
  • Relevant information
    • Commodity name: Link300 Wireless connection tester

    Supports Wi-Fi 7 320M 4 * 4MIMO signaling testing

    Supports Wi-Fi 7 320M 4 * 4MIMO signaling testing



    ■ Support 802.11 a/b/g/n/ac/ax/be、4x4 MIMO



    ■ Support 2.4G, 5G, and 6G



    ■ Support 20/40/80/160/320M bandwidth



    ■ Support AP/STA testing



    ■ Support Tx and Rx testing

    Key words:
    • Wi Fi 7
  • Introduction:



               Link300 is capable of testing various indicators of the Device Under Test (DUT) in signaling mode, including throughput and RvR. Additionally, when used with the WT series instrument, it can evaluate the RF performance of the DUT in signaling mode. By simulating real user scenarios, it measures the performance of data transmission and reception when a user connection is established. Using the same WT series instrument, a comparison can be made between the DUT's performance in signaling mode and non-signaling mode, eliminating errors introduced by instrument switching. This streamlined process greatly facilitates research and development testing.




    Key Features:




    ■ Supports 802.11 a/b/g/n/ac/ax/be, 4x4 MIMO


    ■ Supports 2.4G, 5G, and 6G frequency bands


    ■ Supports a bandwidth of 20/40/80/160/320M


    ■ Supports AP/STA testing


    ■ Support MLO high throughput, load balancing, and other tests


    ■ Support throughput testing,TX and RX testing


    ■ Support automated testing and generate result summary reports


    ■ Support Ext The Link mode mode can use an external signaling interaction module (Ext. Golden Device).
    AP manufacturer: Comparisons of competitor performance in data-driven network mode
    STA manufacturer: can traverse the performance of products when interconnected with different brands

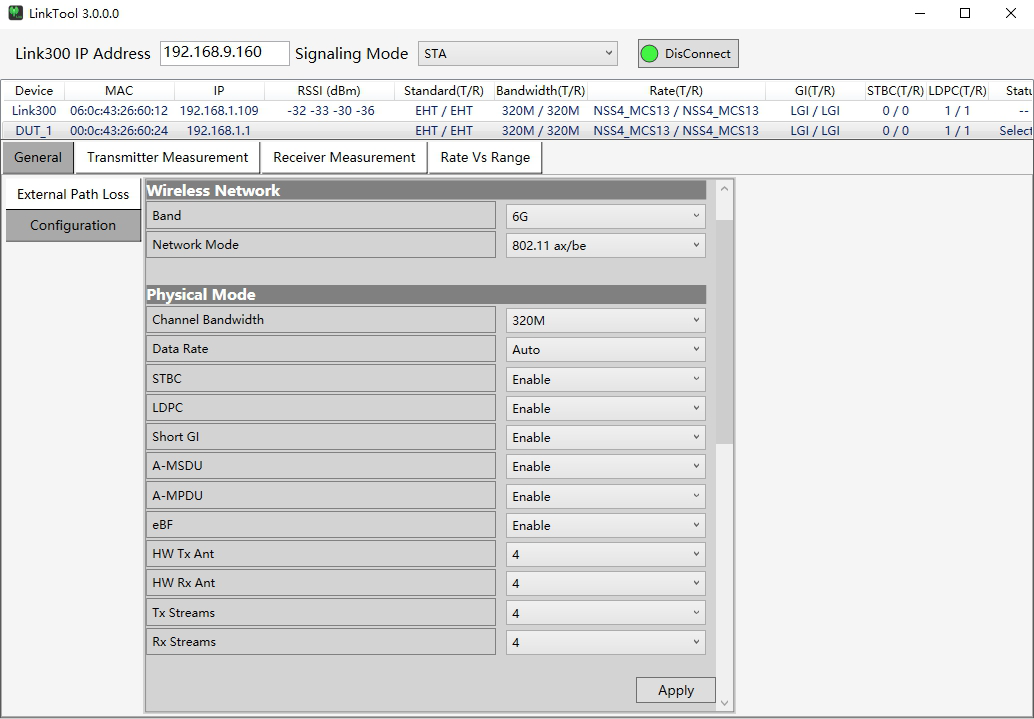

    Manual-test Software “LinkTool”:

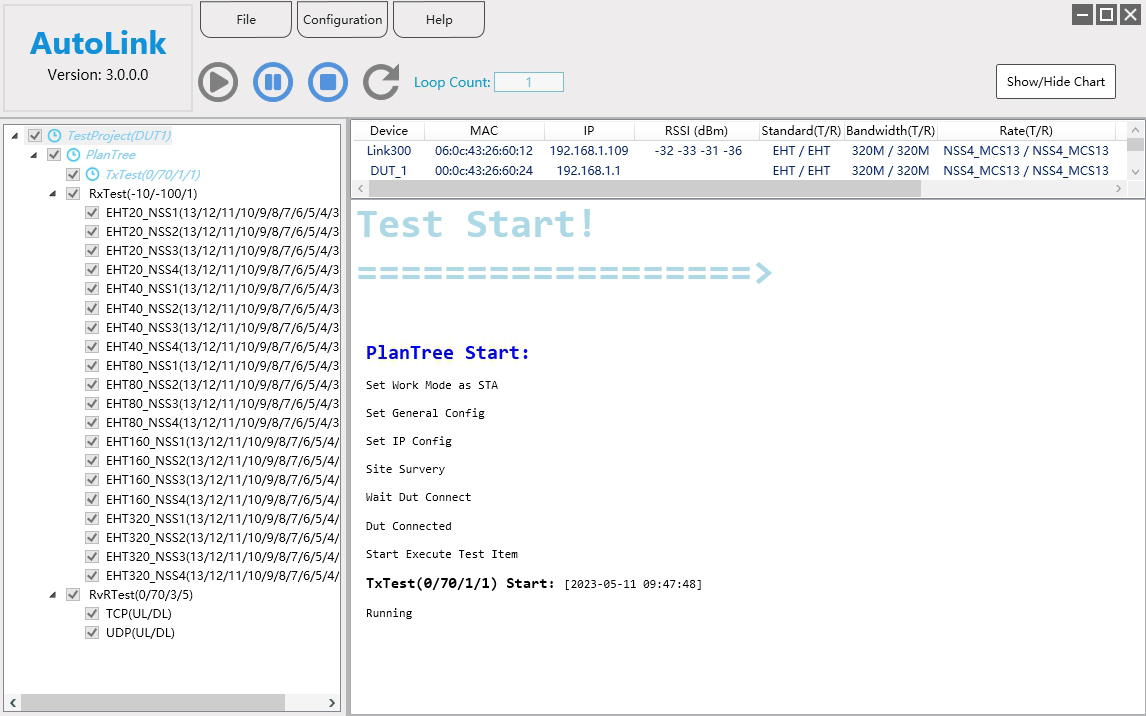

    Auto-test Software “AutoLink”

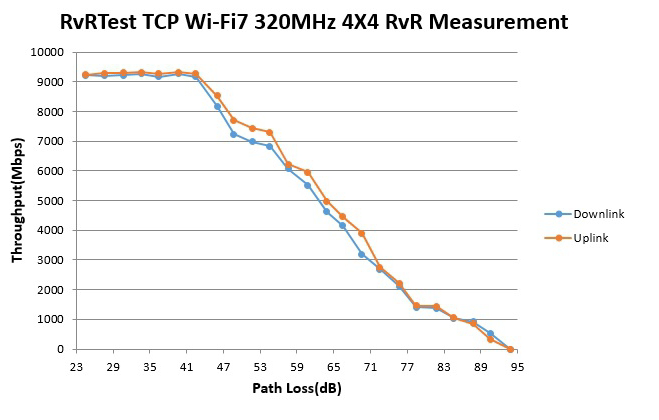

    Graphics Report

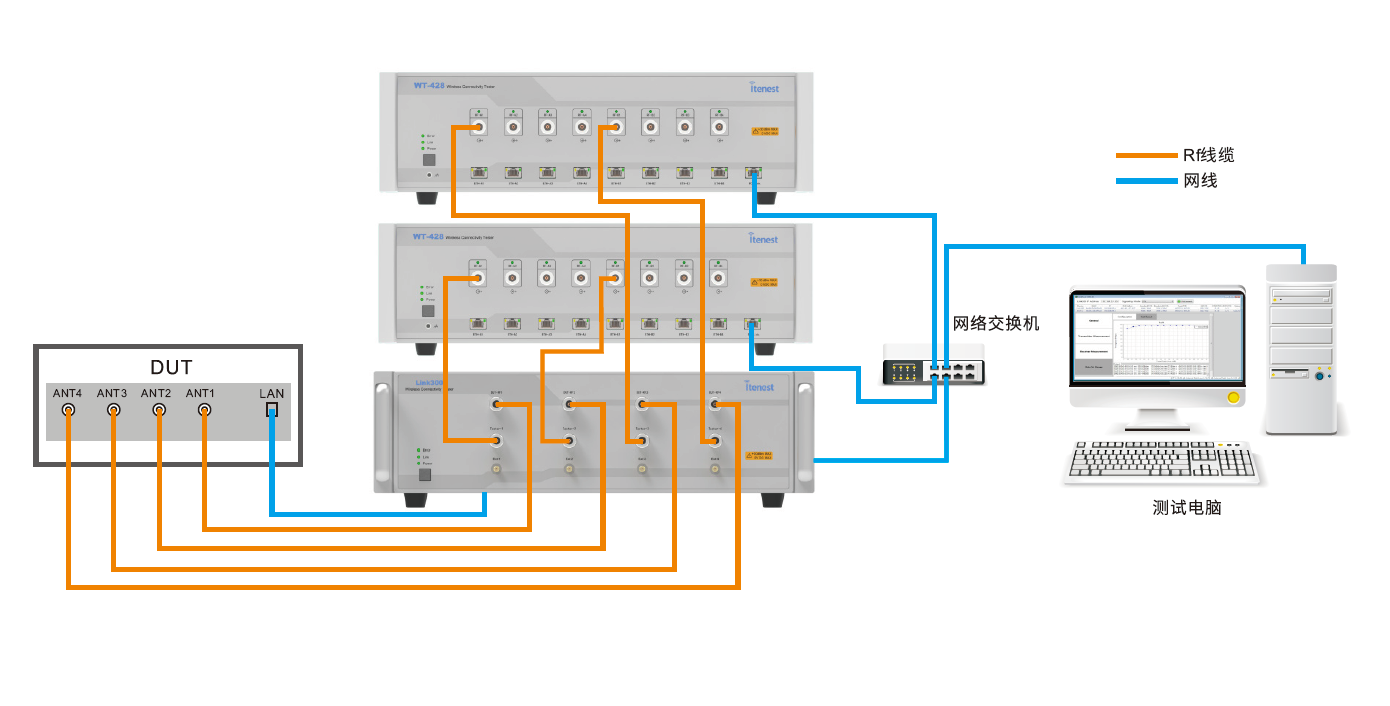

    Wi-Fi 7 4*4MIMO Signaling test network diagram





    Technical Specifications:



    Wireless LAN Measurement Common Specifications

    Signaling mode

    STA

    Beacon level from DUT(Input power level): -80 to +30 dBm

    AP

    Beacon power(Output power level): -100 to 0 dBm

    Spatial streams

    SISO to 4x4 MIMO, Spatial multiplexing, STBC

    Standards

    802.11a/b/g/n/ac/ax/be

    Signal bandwidth

    20, 40 , 80 , 160 , 320 MHz

    Supported channels

    2.4 GHz Band

    1 - 14

    5 GHz Band

    36 - 173

    6 GHz Band

    1 - 233

    Security

    Open system, WEP 64/128, WPA-PSK,WPA2-PSK,WPA3



    Wireless LAN RvR Measurement Specifications



    Traffic direction

    Uplink, Downlink, Bidirection

    Traffic type

    TCP, UDP

    Interference source

    With any WT tester(s)

    Extension function

    Ext Link

    Wireless interface

    Link300 unit

    Ethernet interface

    10G/5G/2.5G/100 Mbps adaptive



    General and Environmental



    Attenuation range

    DUT-RF1 to RF4

    0 to 120 dB

    Attenuation resolution

    0.25 dB

    Attenuation accuracy

    ± 0.5 dB

    Input/Output return loss

    >13 dB

    Port to Port isolation

    >120 dB
