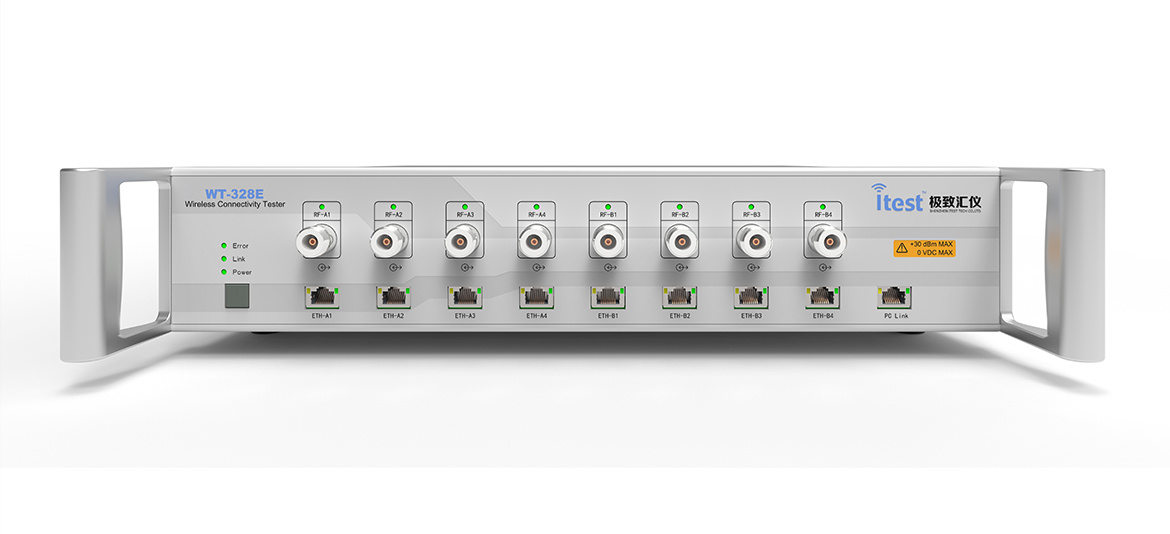

WT-328E Wireless connection tester

Ready for Wi-Fi 6E test

■    supported Sub 400M-7.3G band

■   WT-328E has two independent test units. A single machine supports 2x2 True MIMO and MU-MIMO test .Stacking multiple machines supports: 8x8 True MIMO

■   Supports the industry latest Wi-Fi 6E(802.11ax) standard, with typical residual EVM of 160M bandwidth reaching -47dB.The testing satisfies the optimal performance of the DUT, with higher test accuracy and is conducive to improving the straight-through rate

Classification:

WLAN Products

Key words:

WT-328E Wireless connection tester


Product Consulting
  • Product Description
  • Specification
  • Relevant information
  • Ready for Wi-Fi 6E test

    ■    supported Sub 400M-7.3G band

    ■   WT-328E has two independent test units. A single machine supports 2x2 True MIMO and MU-MIMO test .Stacking multiple machines supports: 8x8 True MIMO

    ■   Supports the industry latest Wi-Fi 6E(802.11ax) standard, with typical residual EVM of 160M bandwidth reaching -47dB.The testing satisfies the optimal performance of the DUT, with higher test accuracy and is conducive to improving the straight-through rate

    Key words:
    • WLAN测试仪、WIFI测试
  • Introduction







    The WT-328E is a high-end wireless network test instrument for high-end Wi-Fi 6E WLAN product testing. It supports the radio frequency signal test of 400M-7.3G frequency band, and can provide reliable and efficient RF test scheme for Wi-Fi 6E products.With two independent test units, the single box supports 2x2 True MIMO test and MU-MIMO; with excellent test specifications and efficient test efficiency, it can meet both R & D and production test scenarios.





    Support business:





    ■ WLAN(802.11 ac/ax 80/80+80/160)



    ■ WLAN(802.11 a/b/g/n/p)



    ■ Bluetooth(1.0/2.0/3.0/4.0/4.1/4.2/5.0)/BLE



    ■ MIMO/MU-MIMO



    ■ IoT:ZigBee/Z-Wave…



    ■ Navigation:GPS/BDS











    Key features:



    Wi-Fi 6E Measurement



    The test frequency band is extended to 400M~7.3G, supporting the latest Wi-Fi 6E standard in the industry, and the typical residual EVM of 160M bandwidth reaches -47dB. To meet the DUT's optimal performance test, the test accuracy is higher, which is beneficial to improve the throughput.



    MIMO Measurement



    Have two sets of test units

    Single machine supports 2x2 True MIMO test

    Stacking machines support 8x8 True MIMO test

    Support MU-MIMO



    8-port Parallel Test



    With advanced high-speed, high isolation switch matrix and the port isolation is up to 110dB (typical). It supports 8-port parallel tests to maximize instrument utilization and reduce product testing costs



    High Reliability



    WT-328E can protect DC voltage below 5V. Under the condition of contact discharge, anti-static capacity can reach 7KV.











    Technical Specifications:



    Input/Output frequency range



    400 to 7300 MHz





    IF bandwidth



    180 MHz



    Input power range





    +30 dBm peak (+25 dBm average)





    Output power range(CW)





    +5 dBm to -100 dBm(400 MHz to 6500MHz)

    0 dBm to -100 dBm(6500 MHz to 7300MHz)



    Input power accuracy



    Specification:



    ± 0.5 dB(+25 to -40 dBm)



    Typical:





    ± 0.3 dB(+25 to -40 dBm)





    Output power accuracy





    Specification:





    ± 0.75 dB ( +5 dBm to -90 dBm400 MHz to 6500MHz)

    ± 1.50 dB ( -90 dBm to -100 dBm,400 MHz to 6500MHz)



    ± 0.75 dB ( 0 dBm to -90 dBm6500 MHz to 7300MHz)

    ± 1.50 dB ( -90 dBm to -100 dBm,6500 MHz to 7300MHz)



    Typical:



    ± 0.5 dB ( 0 to -90 dBm)

    ± 1.50 dB ( -90 to -100 dBm)





    Port to Port Isolation





    >110 dB Typical





    EVM





    Residual VSA EVM

    (full packet channelestimation):



    ≤ -50 dB for 80 M

    ≤ -47 dB for 160 M



    Residual VSG EVM

    (full packet channelestimation):



    ≤ -52 dB for 80 M

    ≤ -49 dB for 160 M
